Features

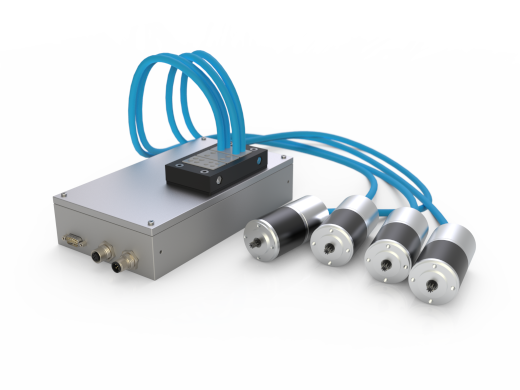

- External control unit for speed and position applications
- Up to 4 logic Nodes
- Motors with integrated, high-resolution encoder
- High quality planetary gear as an option
Specifications
- Supply voltage24 Vdc
- Rated power30 - 120 W
- Rated torque0,06 - 0,30 Nm
- Rated speed4000 rpm
- Positioning accuracy< 0,6°
Data sheet
Data sheet PCS Multidrive 80
Mechanical drawing
On request
